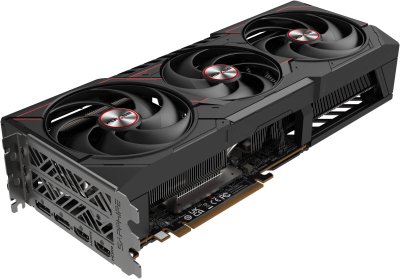

SAPPHIRE PULSE AMD RADEON RX9070XT GAMING 16GB DUAL HDMI/DUAL DP (S88-1E490-100SA)
SKU : 840777091319
GPU: Boost Clock: Up to 2970 MHz
GPU: Game Clock: Up to 2400 MHz
Memory: 16GB/256 bit DDR6. 20Gbps Effective
Stream Processors: 4096
AMD RDNA™ 4 Architecture
Ray Accelerator: 64
฿25,990
฿0
฿25,990
Member
฿0
Member
฿0
Quantity
1 items available
Product description
AMD Radeon RX 9070 XT Specifications
| General | |
| GPU | AMD Radeon RX 9070 XT, RDNA 4 Architecture |
|---|---|
| Game Index | 4K |
| Clock Speeds | |
| Boost Clock | Up to 2970 MHz |
| Game Clock | Up to 2400 MHz |
| Core & Cache | |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Memory | |
| Memory Size | 16GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Clock | 20 Gbps Effective |
| Display | |
| Max Displays | 4 |
| Max Resolution | 7680×4320 (HDMI® & DisplayPort) |
| Outputs | 2x HDMI®, 2x DisplayPort 2.1a |
| Interface | |
| Slot | PCI-Express 5.0 x16 |
| Form Factor | 3 Slot, ATX |
| Dimensions | 320 x 120.25 x 61.6 mm |
| Power | |
| Typical Power | 304W |
| System Requirements | 750W PSU, 2 x 8-pin PCIe, 8GB RAM (16GB recommended) |
| Cooler & Build | |
| Cooling | Tri-X, AeroCurve Fan, Free Flow, Heatpipes, Copper PCB |
| Extras | Metal Backplate, Two-Ball Bearing Fans, Intelligent Fan Control |
| Features | |
| Sapphire | Tri-X Cooling, FrameDefense, TriXX Software, PTM7950 TIM |
| AMD | HYPR-RX, FSR 4, Fluid Motion Frames 2, Smart Access, DirectX® 12 Ultimate |
| Software & OS | |
| BIOS | UEFI |
| OS Support | Windows® 10/11 64-bit, Linux® |
| Accessories | |
| Included | L-Shape Support Bracket |
