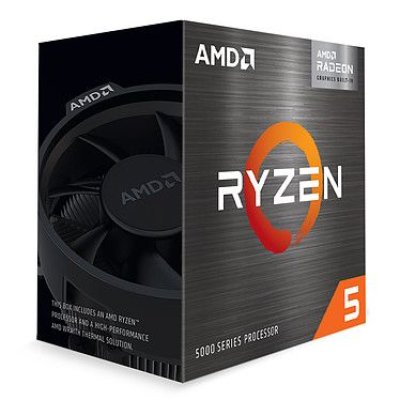

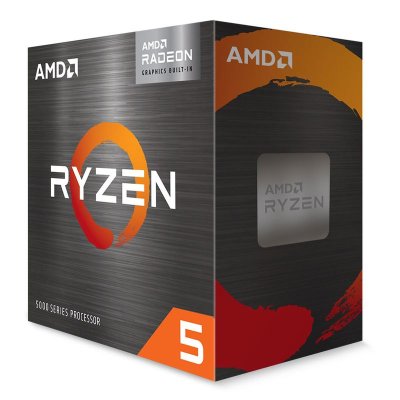

Platform | Boxed Processor |
Market Segment | Mainstream Desktop |
Product Family | AMD Ryzen Processors |
Product Line | AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics |
Consumer Use | Yes |
Commercial Use | No |
Regional Availability | Global, China, NA, EMEA, APJ, LATAM |
Former Codename | Cezanne |
Architecture | Zen 3 |
# of CPU Cores | 6 |
Multithreading (SMT) | Yes |
# of Threads | 12 |
Max. Boost Clock | Up to 4.4GHz |
Base Clock | 3.6GHz |
L1 Cache | 384KB |
L2 Cache | 3MB |
L3 Cache | 16MB |
Default TDP | 65W |
AMD Configurable TDP (cTDP) | 45-65W |
Processor Technology for CPU Cores | TSMC 7nm FinFET |
CPU Compute Die (CCD) Size | 180mm² |
Package Die Count | 1 |
Unlocked for Overclocking | Yes |
CPU Socket | AM4 |
Thermal Solution (PIB) | AMD Wraith Stealth |
Thermal Solution (MPK) | AMD Wraith Stealth |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 1/8/2024 |
*OS Support | Windows 11 64-Bit Edition Windows 10 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
ConnectivityPCI Express® Version | PCIe® 3.0 |
NVMe Support | Boot, RAID0, RAID1, RAID10 |
System Memory Type | DDR4 |
Memory Channels | 2 |
Max. Memory | 128GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
Graphics CapabilitiesIntegrated Graphics | Yes |
Graphics Model | Radeon Graphics |
Graphics Core Count | 7 |
Graphics Frequency | 1900 MHz |
Product IDsProduct ID Boxed | 100-100001489BOX |
Product ID Tray | 100-000001489 |
Product ID MPK | 100-100001489MPK |
